In an electric locomotive, the heat exchanger plays a crucial role in managing the heat generated by various electrical components, ensuring efficient operation and preventing overheating. Here's a breakdown of its working: Components: Primary loop: This loop circulates a coolant, typically water or a water-glycol mixture, through the components that generate heat, such as traction motors, converters, and transformers. Secondary loop: This loop circulates air or another cooling medium through the heat exchanger. Heat exchanger: This is the core of the system, where the hot coolant from the primary loop transfers its heat to the cooler air (or other medium) in the secondary loop. The cooled coolant is then circulated back to the components. Working process: Heat generation: Electrical components in the locomotive generate heat during operation.

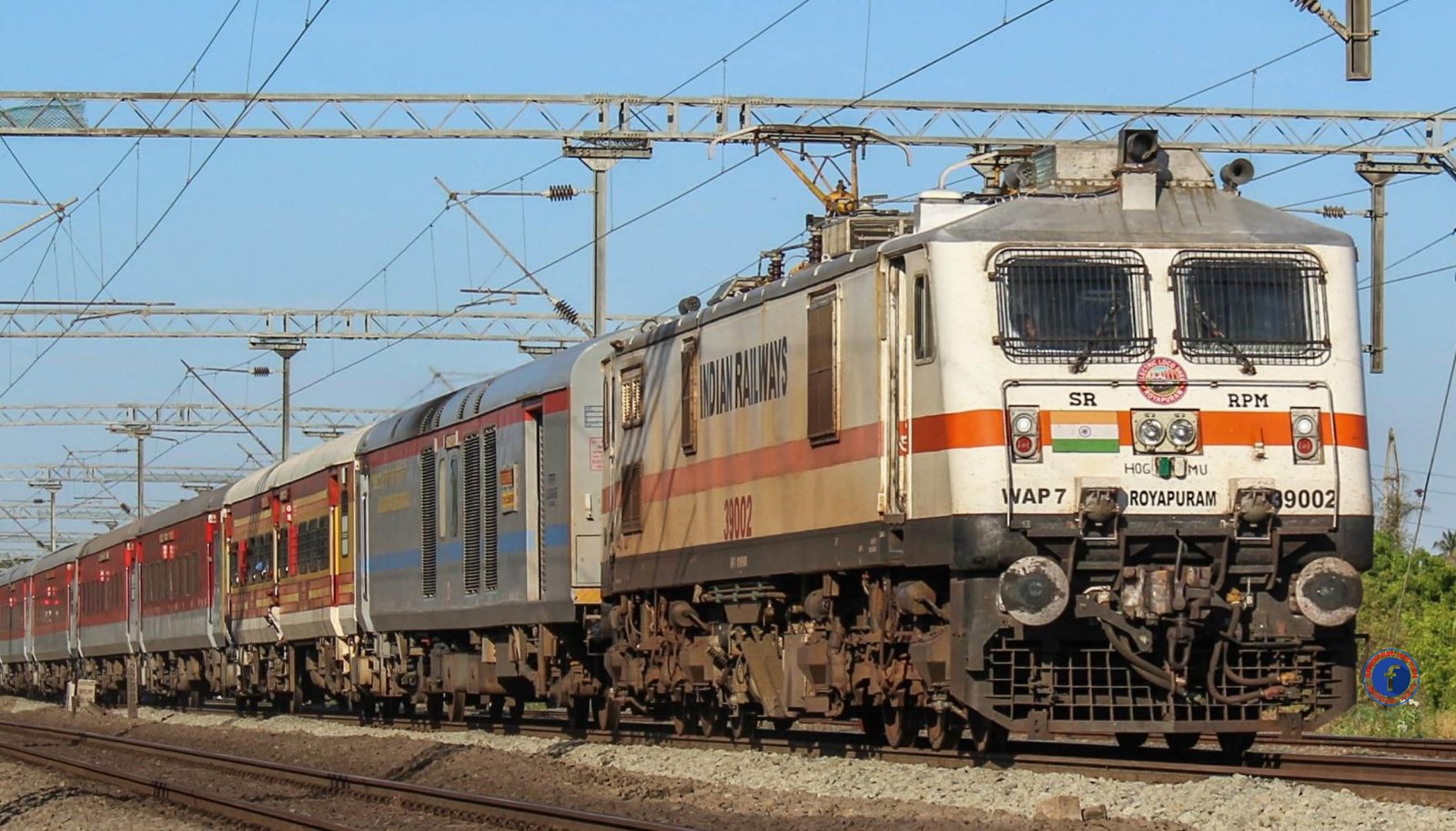

The Indian Railways uses a variety of electric locomotives, classified based on the type of traction (AC or DC), gauge (broad or meter), and intended use (passenger, freight, or mixed). WAP Series: WAP-4: Broad-gauge locomotive used for passenger and freight services. WAP-5: Used primarily for hauling high-speed trains like the Gatimaan Express. WAP-7: Versatile locomotive used for a variety of trains, including high-speed and heavy-haul freight. WAG Series: WAG-7: Broad-gauge freight locomotive. WAG-9: Heavy-haul electric locomotive used for freight services. WAG-5: Used for mixed traffic (both passenger and freight).
