To prevent overheating, transformers are equipped with various cooling systems that dissipate the generated heat. These cooling methods can be broadly classified into oil-based, air-based, and liquid-based cooling systems. Air-based Cooling Systems Air-based cooling systems, also known as dry-type transformers, do not use any liquid cooling medium. Instead, they rely on natural or forced air convection to dissipate heat. These transformers are designed with enhanced cooling surfaces and airflow channels to maximize heat transfer. Natural convection relies on the temperature difference between the transformer and the surrounding air to create a natural flow of air that carries away the heat. Forced air cooling, on the other hand, utilizes fans or blowers to circulate air more efficiently, providing better cooling performance. Air-based cooling systems eliminate the need for oil, making them safer and more environmentally friendly. They are commonly used in indoor applications, such as buildings, hospitals, and data centers.

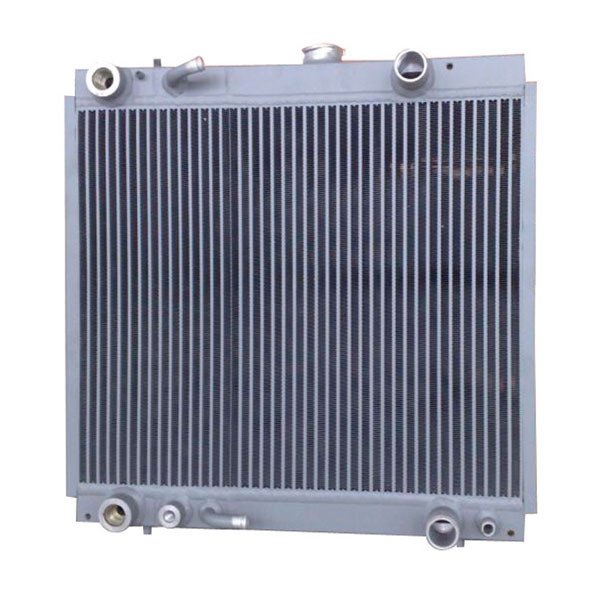

Bar and plate radiators are renowned for their exceptional performance and durability. They consist of a series of interconnected tubes and fin plates, allowing optimal heat transfer and increased cooling efficiency. Unlike traditional tube and fin radiators, bar and plate radiators have a unique design that maximizes their cooling capabilities. The core of a bar and plate radiator is made up of a set of flat tubes, known as plates, which are stacked together and separated by thin bars. These bars create channels for the coolant to flow through. The plates and bars are usually made of aluminum, which is an excellent conductor of heat. This design allows for a larger surface area for heat exchange, resulting in improved cooling performance. When the engine's coolant enters the radiator, it flows through the tubes and channels created by the plates and bars. As the coolant passes through this network, it comes into contact with the hot engine coolant, which transfers its heat to the cooler coolant. This heat transfer process occurs due to the temperature difference between the two fluids. As the coolant absorbs the heat, it cools down, and the process repeats until the desired temperature is reached.
